特點:
1、PLC+人機界面+變頻器控制系統,自動化程度高;
2、人機界面手動及輸入界面顯示,易操作,方便故障檢查;
3、自動下管、更換卷芯、切割及落料;
4、配置輸送帶(選購),可單人完成操作機器及成品裝箱作業。

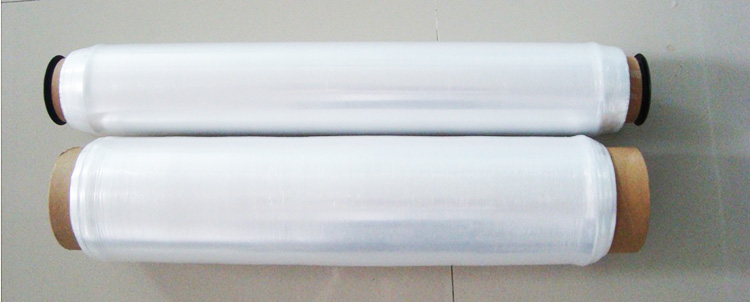

Pre-stretch film rewinding machine is mainly used for rewinding normal film and industrial pre-stretch film. Different drawing ratio can be acquired with different gear in the machine, and hence the film could be stretched to different thickness and width at the same time.
Features:
1)High degree of automation level, with PLC and HMI together with inverter control system.
2)Easier to operate and inspect machine with both automatic and HMI.
3)Loading and changing paper core, cutting and loading finished products, plus slicing and blanking, all can be finished automatically.
4)One single worker can operate two or three machines with conveyor at the same time. (Conveyor is the choice system, not included the machine)
型號Model |
HTR-P600 |
母卷寬度Width Of Mother Roll |
Max600mm |
成品寬度Width Of Finish Roll |
300mm-600mm |
機械線速Speed |
Max600m/Min |
母卷直徑Mother Roll Diameter |
Max 400mm |
子卷直徑Finish Roll Diameter |
Max 150mm |
母卷紙芯Core Of Mother Roll |
3〞 |
子卷紙芯Core Of Finish Roll |
3〞, 2〞,(紙管厚度≥4mm ,Thickness of paper core ≥4mm) |
機器尺寸 Dimension |
1550*1550*1500/mm |
機器重量 Net weight |
800KG |
